Electra Portable Ventilator

Designed & Licensed by NASA JPL

FDA approved under EUA as Emergency Ventilator

img-responsive

Healthcare App

Tablet to access data in real time via an
exclusive healthcare app.

img-responsive

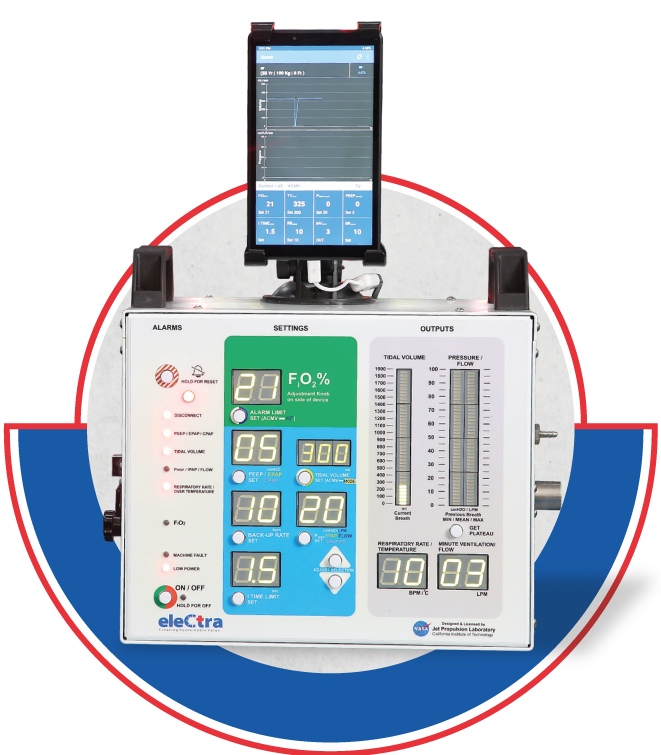

    Display Parameter

  • Tidal Volume (ml)

  • Airway Pressure - MIN/MEAN/MAX (cmH2O)

  • Respiratory Rate (bpm)

  • Minute Ventilation (LPM)

img-responsive

    Control Parameters

  • Tidal Volume: 150-1800 ml

  • PIP (Peak Inspiratory Pressure): 5-70 cmH2O

  • I-PAP: 5-40 cmH2O

  • PEEP (Positive End Expiratory Pressure): 5-30 cmH2O

  • EPAP: 5-30 cmH2O - FiO2: 21-100%

  • Breath Rate Per Minute: 4-40 BMP- I Time: 0.1-3.0 sec

  • Apnea Backup Rate: 4-40 BPM

  • High Flow Therapy: 20-70 LPM

img-responsive

    Alarms

  • Disconnect (for Patient Tubing)

  • PEEP

  • Tidal Volume

  • P insp

  • Over & Under Flow Alarm

  • Temperature Alarm

  • Respiratory Rate

  • FiO2

  • Machine Fault

  • Low Power (For Alarm Battery)

Display Parameter

  • Tidal Volume (ml)

  • Airway Pressure - MIN/MEAN/MAX (cmH2O)

  • Respiratory Rate (bpm)

  • Minute Ventilation (LPM)

Control Parameters

  • Tidal Volume: 150-1800 ml

  • PIP (Peak Inspiratory Pressure): 5-70 cmH2O

  • I-PAP: 5-40 cmH2O

  • PEEP (Positive End Expiratory Pressure): 5-30 cmH2O

  • EPAP: 5-30 cmH2O - FiO2: 21-100%

  • Breath Rate Per Minute: 4-40 BMP- I Time: 0.1-3.0 sec

  • Apnea Backup Rate: 4-40 BPM

  • High Flow Therapy: 20-70 LPM

Alarms

  • Disconnect (for Patient Tubing)

  • PEEP

  • Tidal Volume

  • P insp

  • Over & Under Flow Alarm

  • Temperature Alarm

  • Respiratory Rate

  • FiO2

  • Machine Fault

  • Low Power (For Alarm Battery)

  • electra

    Multifunctional & Advanced

  • electra

    Portable & Easy-to-handle

  • electra

    Efficient & User-friendly

  • electra

    Cost
    Effective

  • electra

    Plug &
    Play

  • electra

    App
    Supported

  • electra

    Low
    Maintenance

  • electra

    Light
    Weight

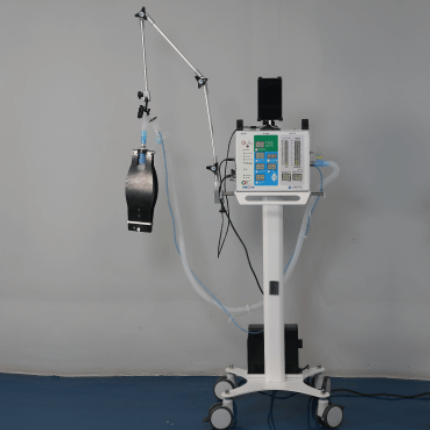

Electra Portable Ventilator is a unique and versatile ventilator device designed for patients suffering from respiratory disorders. The VITAL Ventilator (as it is originally called by NASA) has been designed by NASA and JPL, and is approved by the FDA as an Emergency Ventilator. With technical advances and along with added modes and features, Electra Portable Ventilator is better equipped to fulfill the requirements of those needing ventilator support in clinical states such as low compliance, high resistance, hypoxia and hypercapnia.

Additionally, it also serves a targeted subset of the patient population suffering from Acute Respiratory Distress Syndrome (ARDS) caused by COVID-19. Aided with BiPAP and High Flow Oxygen Therapy, it facilitates Apnea back up in assist control, when a patient initiates a spontaneous breathing. Electra Ventilator also offers CPAP, SIMV, Pressure control, Volume control modes in invasive and non-invasive options.

It is lightweight, easy-to-use, and connected digitally via a Healthcare App, making the machine accessible, for doctors and medical professionals from anywhere in the world.

Certified By

  • img

    ISO 9001:2015

  • img

    CE Approved

  • img

    ISO 13485:2016

  • img

    CDSCO

Journey of Electra Ventilator

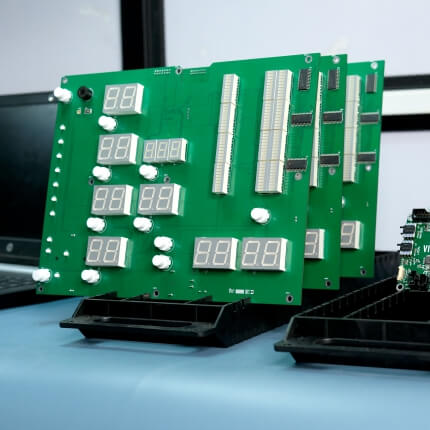

April 2020

Developed a Ventilator prototype amidst
rising COVID-19 cases


July 2020

NASA awarded the license to manufacture & distribute the 'VITAL' Ventilator (one among five selected from India)

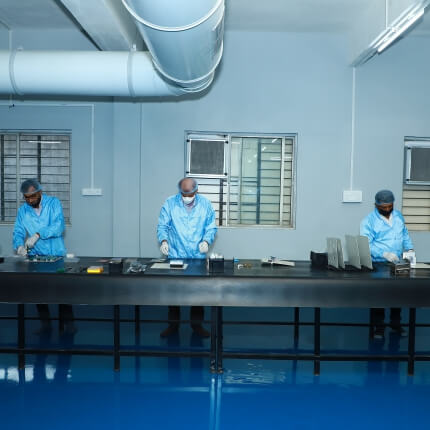

August 2020

Initiated R & D to enhance its features

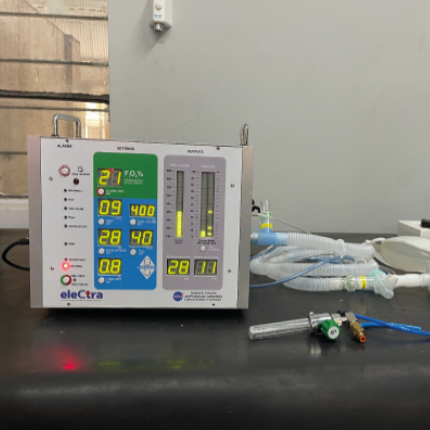

October 2020

Created demo pieces of Ventilator for testing

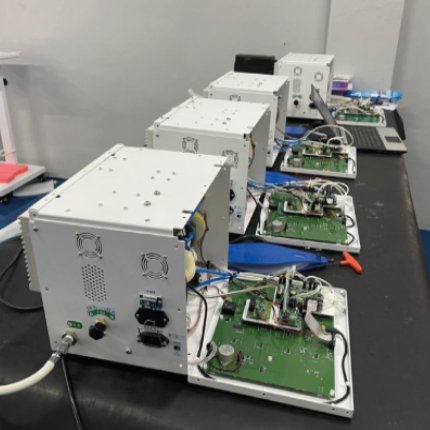

November 2020

Successfully tested under observation of doctors & technical experts. Machine submitted for licensing

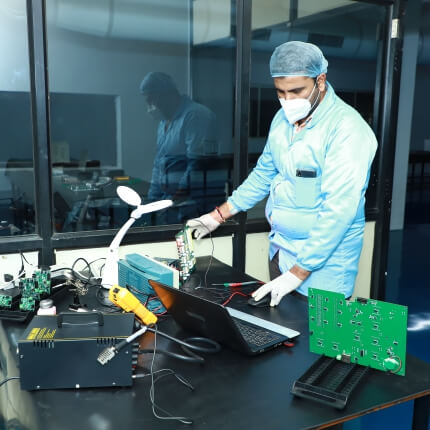

December 2020

Initiated R & D to further enhance the original version of Electra Ventilator & make it compatible to the growing demands with Version 2

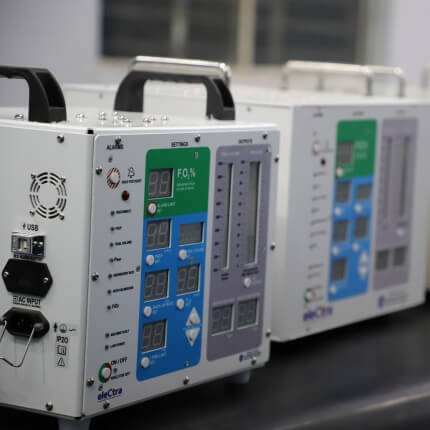

January 2021

Successfully manufactured & dispatched the 1st batch of Electra Ventilator


February 2021

Developed Version 2 of Electra Ventilator, this time with BiPAP & High Flow Oxygen Therapy modes. These played key roles in the fight against COVID-19 during 2nd wave

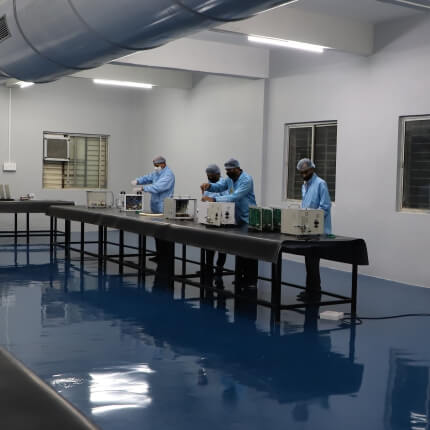

April 2021

Manufacturing begins for 2nd batch of Electra Ventilator


August 2021

Launched Version 3, this time with added features of CPAP. SIMV, Pressure Control & Volume Controls in invasive & non-invasive options.


Electra Ventilator


Download the brochure and explore more about the modes, features, technical configuration of Electra Portable Ventilator machine.
